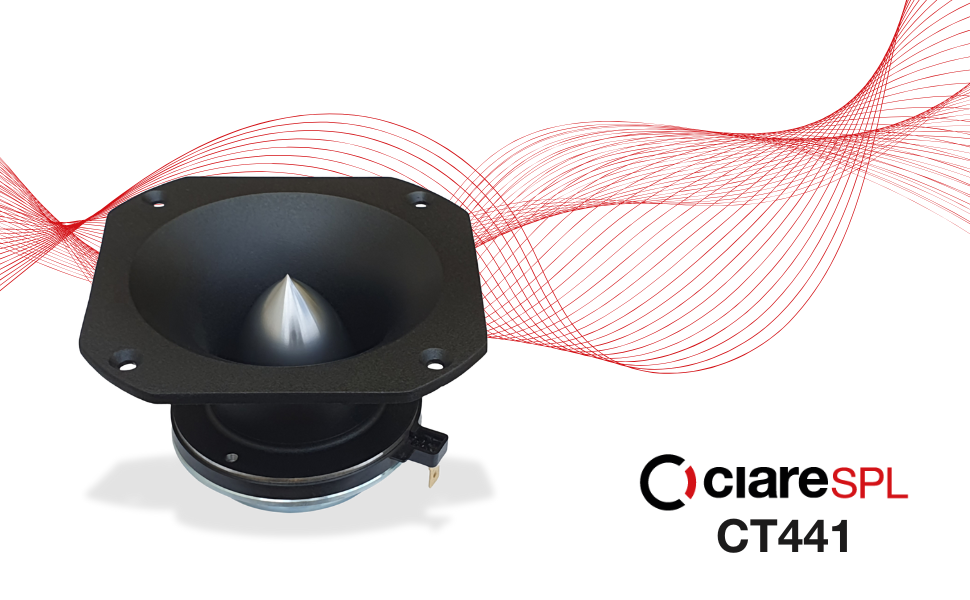

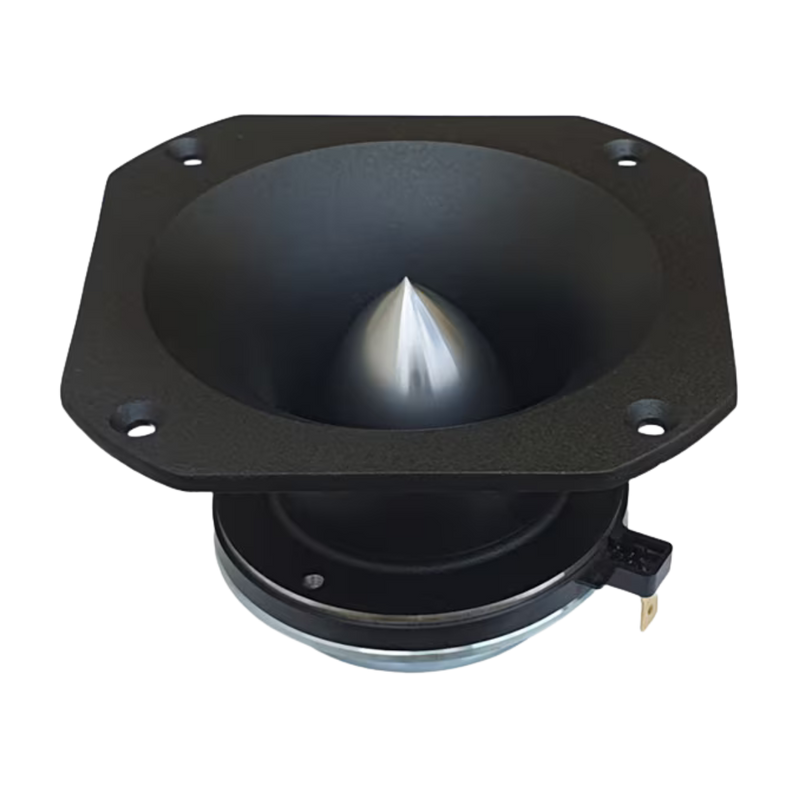

CT441 500W High Output Mylar Tweeter Cast Black 8-Ohm

The power rating of a speaker is typically listed in two ways:

Nominal or Continuous power rating: The amount of pure power that can be applied to a speaker continuously with a constant signal. Some manufacturers use a pure tone or industry accepted signal (such as a modified version of pink noise) and apply it for a given period of time (typically 2 to 8 hours or more).

Music/Program power rating: Music typically does not have constant tones, there are many instances within a song where the signal is low and amplifier power drops to near 0 watts, which allows for a speaker’s voice coil to cool. Because of this, a speaker is able to accept twice the amount of power from an amplifier, provided the amplifier is not sending a clipped signal (which is momentary DC voltage) to the speaker.

For tweeters and high frequency compression drivers, the power handling rating assumes that an appropriate high-pass filter (passive or active) is used.

A speaker’s impedance is traditionally considered the lowest AC resistance in a speaker’s bandwidth, which is between resonant frequency (also referred to as Fs) and the highest frequency the speaker can reproduce.

When testing a speaker’s resistance with a multimeter, DC resistance (also referred to as Re) is being measured. It is very common to measure resistance up to 50% lower than a speaker’s rated impedance.

For example, many 8-ohm speakers will measure 6 ohms with a multi-meter or DMM.

A speaker’s resonant frequency is the frequency at which the weight of the moving parts of the speaker becomes balanced with the force of the speaker suspension when in motion.

With a speaker, the mass of the moving parts, and the stiffness of the suspension (surround and spider) are the key elements that affect the resonant frequency.

As a general rule of thumb, a lower resonant frequency indicates a woofer that would be better for low-frequency reproduction than a speaker with a higher Fs. This is not always the case though, because other parameters affect the ultimate performance as well.

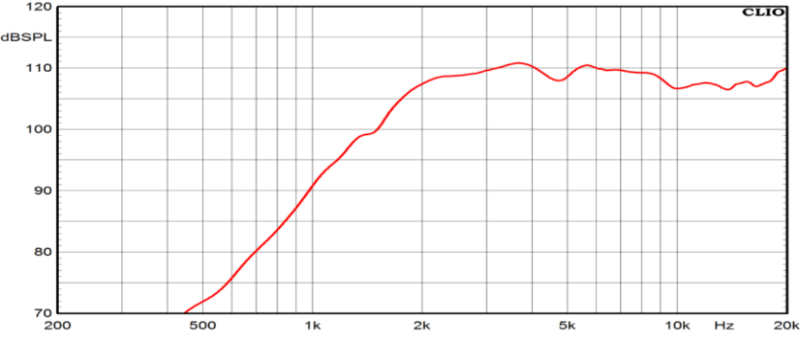

A speaker’s usable frequency range is defined differently for each type of speaker but generally follows the rule of thumb where the lowest frequency is the resonant frequency, and the highest frequency is where the speaker’s output begins to decrease.

Woofers will typically play lower than the listed lowest frequency but is dependent on the enclosure type (sealed versus ported/vented versus bandpass), size, and tuning.

High frequency speakers, such as tweeters and compression drivers, have a slightly different usable frequency range that typically starts at one octave (or twice the frequency) above resonant frequency. It is a good rule-of-thumb to use a 12 dB/octave (or steeper, such as 18 dB/octave) high-pass filter set to double or triple the resonant frequency.

A speaker’s sensitivity represents one of the most useful specifications published. It is a representation of the efficiency and loudness (SPL, which is sound pressure level) you can expect from a device relative to the input power.

Sensitivity is expressed as the average output across the usable frequency when applying 1W/1M into the nominal impedance, 2.83V for 8 ohms, 2V for 4 ohms.

As most amplifiers are voltage-source devices, increasing the gain increases the voltage. Once gain is set at a particular level, it is common to notice that a 4-ohm speaker is a little louder (around 3 dB) on a given amplifier than an 8-ohm speaker connected to the same amplifier. This is due to the 4-ohm speaker drawing twice the amount of current from the amplifier than the 8-ohm speaker.
